Composition Visualization

  • ID: MICRO-L04
  • Type: Lesson
  • Audience: Public
  • Theme: Relative abundance, aggregation choices, and compositional constraints

Composition plots are often the first figures shown in microbiome studies.

Bar plots at the phylum or genus level are common. They appear intuitive. They are also easy to misinterpret.

Relative abundance plots do not show absolute change.

They show proportions constrained to sum to one.

This chapter focuses on:

Load data

ps <- readRDS("data/moving-pictures-ps.rds")

source("scripts/R/cdi-plot-theme.R")
pal <- cdi_palette()

Transform to relative abundance

Raw counts are not comparable across samples with different sequencing depth.

ps_rel <- phyloseq::transform_sample_counts(ps, function(x) x / sum(x))
range(phyloseq::sample_sums(ps_rel))
[1] 1 1

Each sample now sums to 1.

This enables proportional comparison across samples. However, relative abundance introduces compositional constraints. An increase in one taxon must decrease another.

Aggregate to genus level

ps_genus <- phyloseq::tax_glom(ps_rel, taxrank = "Genus")
phyloseq::ntaxa(ps_genus)
[1] 197

Remove taxa without genus assignment:

ps_genus <- phyloseq::subset_taxa(ps_genus, !is.na(Genus))
phyloseq::ntaxa(ps_genus)
[1] 197

Aggregation simplifies visualization, but it also hides within-genus variation.

Resolution is always a trade-off.

Identify top genera

To improve readability, select the globally most abundant genera.

genus_abundance <- phyloseq::taxa_sums(ps_genus)
top_genera <- names(sort(genus_abundance, decreasing = TRUE))[1:10]

ps_top <- phyloseq::prune_taxa(top_genera, ps_genus)
phyloseq::ntaxa(ps_top)
[1] 10

Prepare composition table for plotting

We compute mean relative abundance by body site, then visualize it using two R figures: a stacked bar chart and a heatmap.

# Long format table (sample-level)
df_comp <- phyloseq::psmelt(ps_top)

# Detect column names robustly (psmelt can vary by dataset)
cols <- names(df_comp)

sample_col <- dplyr::case_when(
  "Sample" %in% cols ~ "Sample",
  "SampleID" %in% cols ~ "SampleID",
  "sample_id" %in% cols ~ "sample_id",
  TRUE ~ NA_character_
)

body_col <- dplyr::case_when(
  "body-site" %in% cols ~ "body-site",
  "body.site" %in% cols ~ "body.site",
  "body_site" %in% cols ~ "body_site",
  TRUE ~ NA_character_
)

if (is.na(sample_col) || is.na(body_col)) {
  stop(
    "Expected columns not found in psmelt output. ",
    "Available columns: ", paste(cols, collapse = ", "), ". ",
    "Missing: ",
    paste(
      c(if (is.na(sample_col)) "Sample/SampleID/sample_id" else NULL,
        if (is.na(body_col)) "body-site/body.site/body_site" else NULL),
      collapse = ", "
    )
  )
}

# Keep only what we need and standardize names
df_comp <- df_comp[, c(sample_col, "Abundance", "Genus", body_col)]
names(df_comp) <- c("Sample", "Abundance", "Genus", "body_site")

# Mean relative abundance by (body_site, Genus)
df_mean <- stats::aggregate(
  Abundance ~ body_site + Genus,
  data = df_comp,
  FUN = mean
)

dir.create("outputs/tables", recursive = TRUE, showWarnings = FALSE)
readr::write_csv(df_mean, "outputs/tables/mean-composition-body-site-genus.csv")

head(df_mean)
   body_site           Genus    Abundance
1        gut     Bacteroides 0.5623933731
2  left palm     Bacteroides 0.0074999258
3 right palm     Bacteroides 0.1497196754
4     tongue     Bacteroides 0.0023039649
5        gut Corynebacterium 0.0001221555
6  left palm Corynebacterium 0.1273285793

For overview plots, averaging within a group can reveal stable patterns that are hard to see at the sample level.

This is descriptive summarization, not inference.

Composition by body site

# Order body sites by total mean abundance across the plotted genera
body_order <- df_mean |>
  dplyr::group_by(body_site) |>
  dplyr::summarise(total = sum(Abundance, na.rm = TRUE), .groups = "drop") |>
  dplyr::arrange(dplyr::desc(total)) |>
  dplyr::pull(body_site)

df_mean$body_site <- factor(df_mean$body_site, levels = body_order)

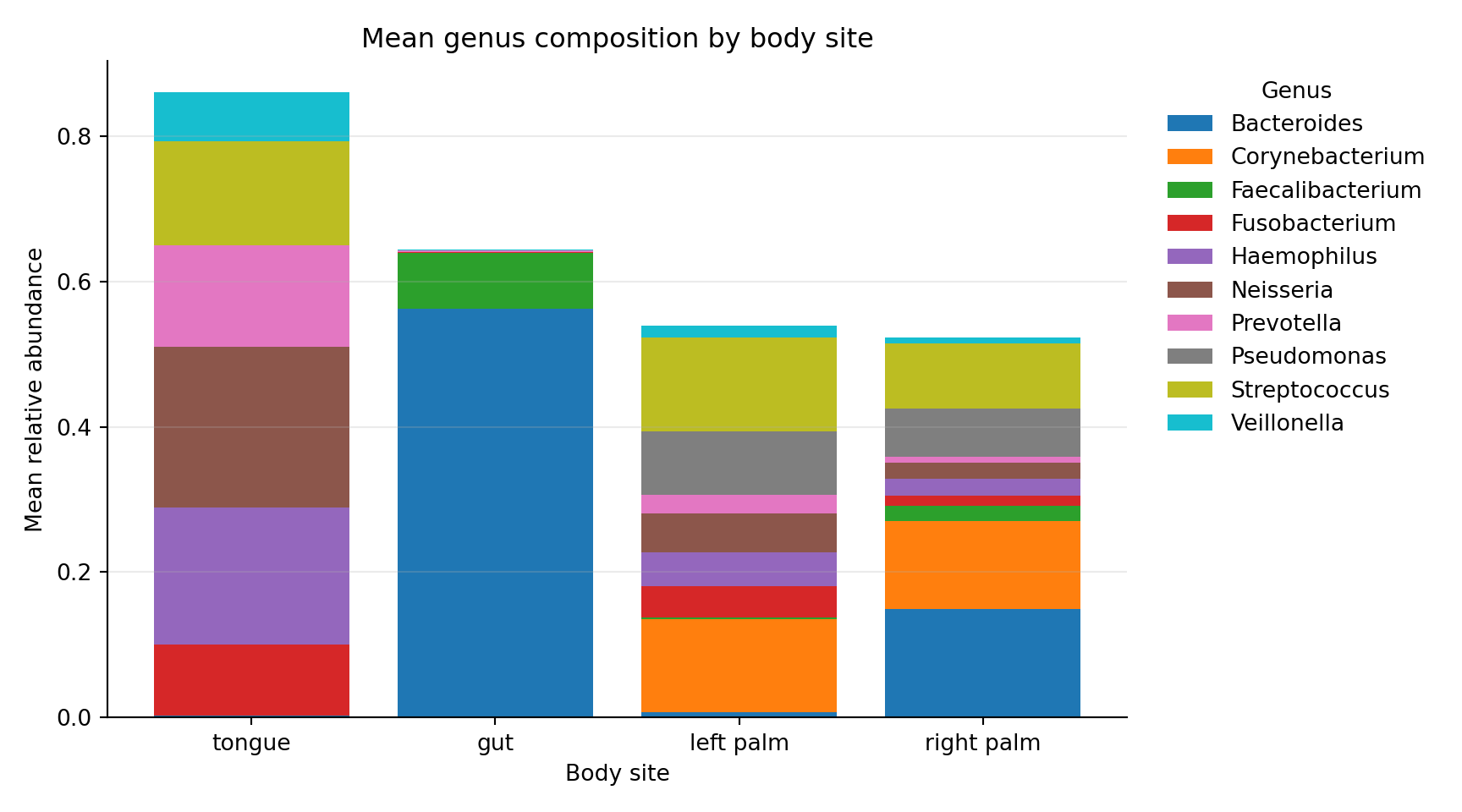

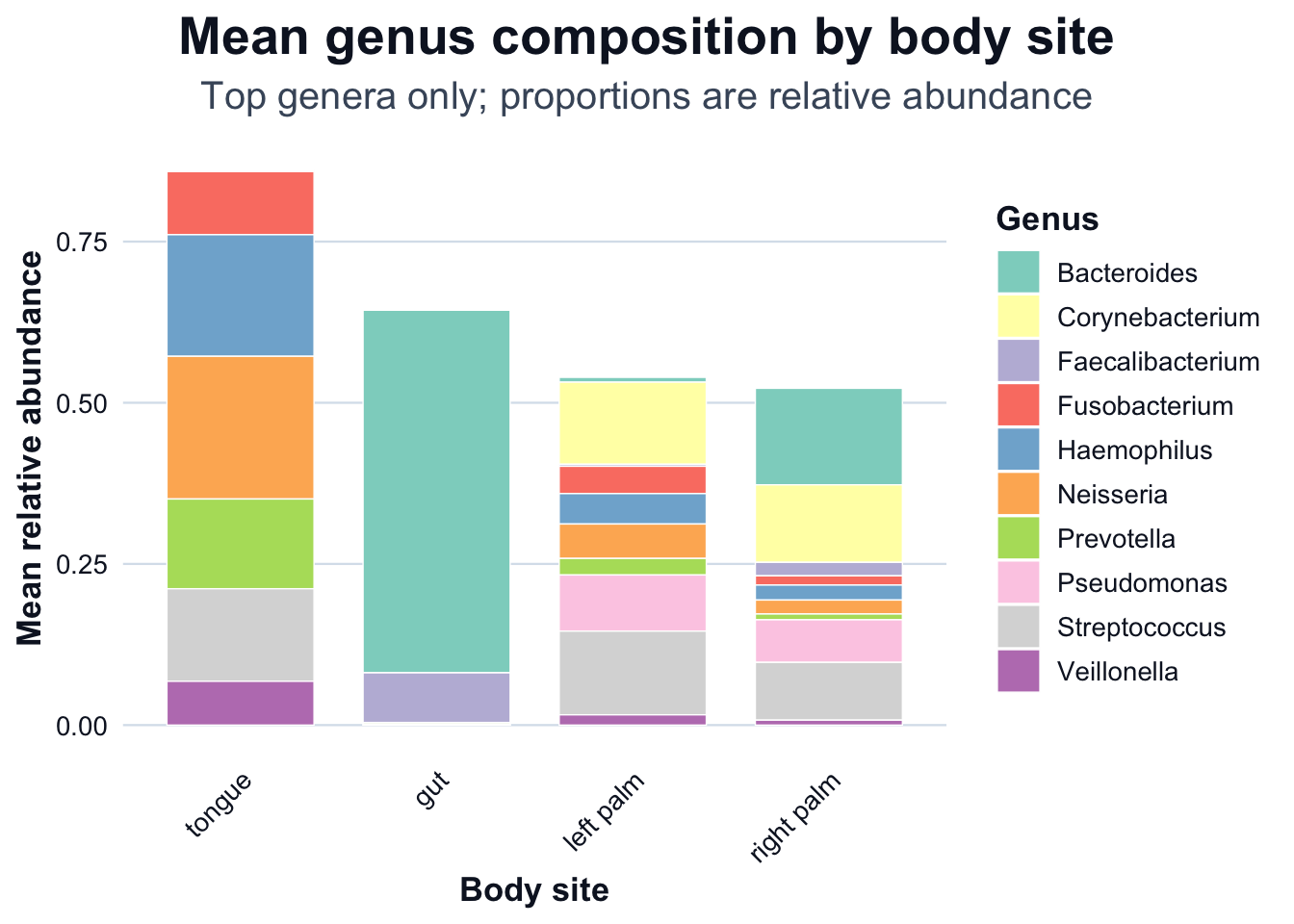

ggplot2::ggplot(df_mean, ggplot2::aes(x = body_site, y = Abundance, fill = Genus)) +
  ggplot2::geom_col(width = 0.75, color = "white", linewidth = 0.25) +
  ggplot2::scale_fill_brewer(palette = "Set3") +
  ggplot2::labs(
    title = "Mean genus composition by body site",
    subtitle = "Top genera only; proportions are relative abundance",
    x = "Body site",
    y = "Mean relative abundance"
  ) +
  cdi_theme() +
  ggplot2::theme(
    axis.text.x = ggplot2::element_text(angle = 45, hjust = 1, vjust = 1),
    legend.position = "right"
  )

These bars show average proportions, not absolute microbial load.

A taxon can appear to “increase” in relative abundance even if its absolute abundance is unchanged.

Composition heatmap

# Order genera by overall mean abundance (top to bottom in legend)
genus_order <- df_mean |>
  dplyr::group_by(Genus) |>
  dplyr::summarise(total = sum(Abundance, na.rm = TRUE), .groups = "drop") |>
  dplyr::arrange(dplyr::desc(total)) |>
  dplyr::pull(Genus)

df_heat <- df_mean
df_heat$Genus <- factor(df_heat$Genus, levels = genus_order)
df_heat$body_site <- factor(df_heat$body_site, levels = levels(df_mean$body_site))

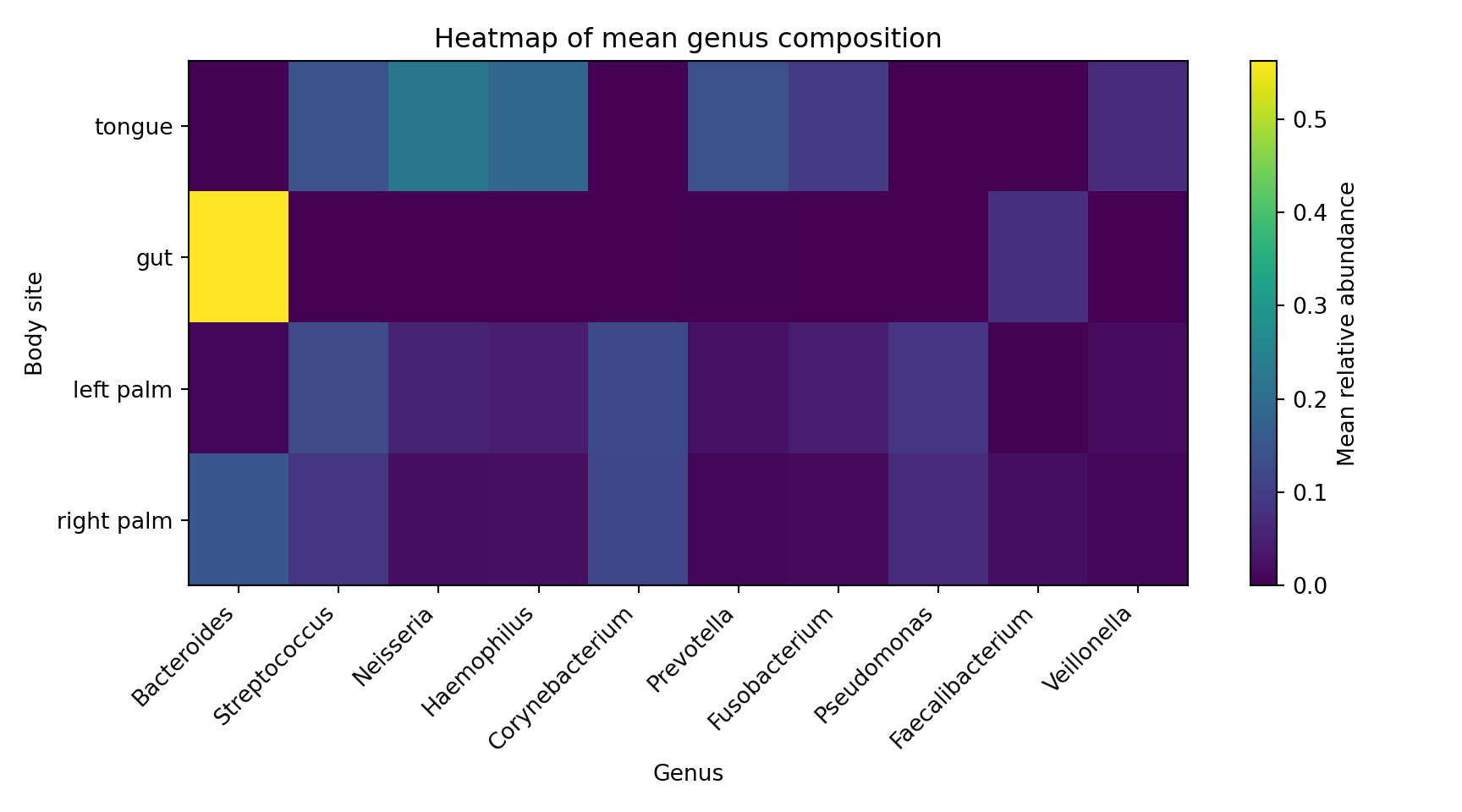

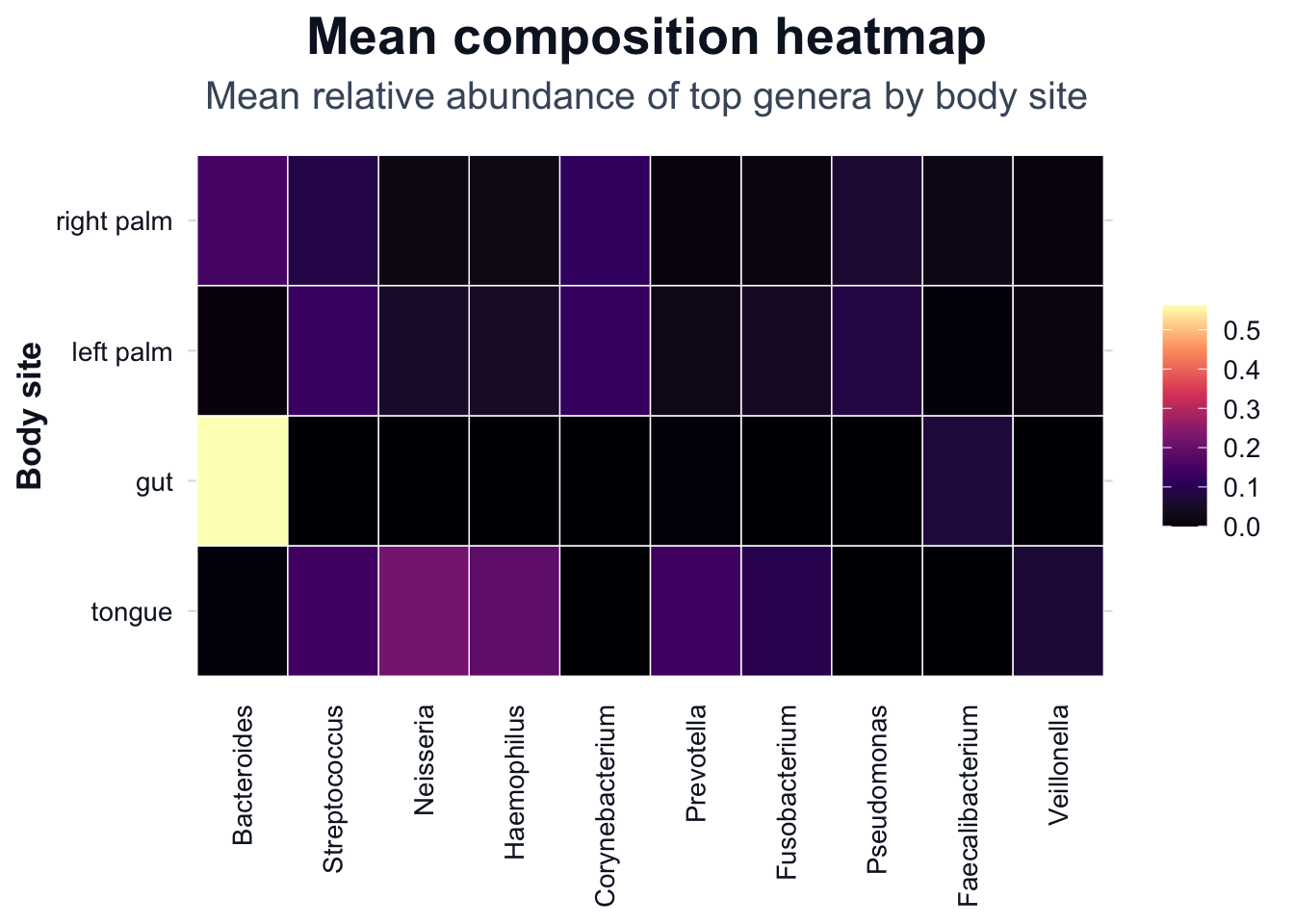

ggplot2::ggplot(df_heat, ggplot2::aes(x = Genus, y = body_site, fill = Abundance)) +
  ggplot2::geom_tile(color = "white", linewidth = 0.25) +
  ggplot2::labs(
    title = "Mean composition heatmap",
    subtitle = "Mean relative abundance of top genera by body site",
    x = NULL,
    y = "Body site",
    fill = NULL
  ) +
  cdi_scale_fill_heat(option = "magma", show_legend = TRUE) +
  cdi_theme() +
  ggplot2::theme(
    axis.text.x = ggplot2::element_text(angle = 90, hjust = 1, vjust = 0.5),
    panel.grid = ggplot2::element_blank(),
    legend.position = "right"
  )

Heatmaps emphasize patterns of dominance and absence across groups.

They are sensitive to aggregation level and filtering choices.

Limitations of composition plots

Composition plots:

  • are constrained by constant-sum scaling
  • cannot reveal absolute abundance changes
  • are sensitive to filtering and aggregation level

Composition plots answer: “What proportion of the community does each taxon occupy?”

They do not answer: “Did the taxon increase in absolute abundance?”
