Heatmaps and Patterns

Heatmaps summarize many taxa across many samples at once.

They are useful for pattern discovery, but they are also easy to overread. A heatmap is a visualization of a transformed matrix, not a direct picture of biology.

Heatmaps help answer: “Which taxa tend to appear together, and in which samples or groups?”

They do not answer: “Which taxa are statistically different?” without formal testing.

This chapter focuses on:

Load data

library(phyloseq)

ps <- readRDS("data/moving-pictures-ps.rds")

Decide what to heatmap

Heatmaps work best when the matrix:

  • has been transformed (raw counts are dominated by depth)
  • has a limited number of taxa (readable signal)
  • is aligned to metadata (so patterns can be interpreted)

We will create a genus-level heatmap using the top taxa by mean relative abundance.

Transform to relative abundance and aggregate to genus

ps_rel <- phyloseq::transform_sample_counts(ps, function(x) x / sum(x))

ps_genus <- phyloseq::tax_glom(ps_rel, taxrank = "Genus")
ps_genus <- phyloseq::subset_taxa(ps_genus, !is.na(Genus))

phyloseq::ntaxa(ps_genus)
[1] 197

Aggregation improves readability, but it hides within-genus variation.

Heatmap patterns should be interpreted at the chosen resolution.

Select top genera

genus_mean <- phyloseq::taxa_sums(ps_genus) / phyloseq::nsamples(ps_genus)

top_n <- 30
top_genera <- names(sort(genus_mean, decreasing = TRUE))[1:top_n]

ps_top <- phyloseq::prune_taxa(top_genera, ps_genus)
phyloseq::ntaxa(ps_top)
[1] 30

Build the heatmap matrix (R → Python)

We will export a clean matrix for Python plotting:

  • rows: taxa (Genus)
  • columns: samples
  • values: centered log ratio style is premium-level; for free we use log1p relative abundance

We also export metadata to annotate columns.

# Extract matrix
mat <- methods::as(phyloseq::otu_table(ps_top), "matrix")
if (!phyloseq::taxa_are_rows(ps_top)) {
  mat <- t(mat)
}

# Log transform for heatmap stability (free-track choice)
mat_log <- log1p(mat)

# Taxon labels
tax <- as.data.frame(phyloseq::tax_table(ps_top))
tax$taxon_id <- rownames(tax)

# Prefer Genus as label, fallback to taxon id if needed
label <- tax$Genus
label[is.na(label) | label == ""] <- tax$taxon_id[is.na(label) | label == ""]

# Apply labels
rownames(mat_log) <- make.unique(as.character(label))

# Export matrix
dir.create("outputs/tables", recursive = TRUE, showWarnings = FALSE)
mat_log_df <- tibble::as_tibble(mat_log, rownames = "taxon")
readr::write_csv(mat_log_df, "outputs/tables/heatmap-matrix.csv")

# Export metadata (for column annotation)
meta <- data.frame(phyloseq::sample_data(ps_top))
meta$sample_id <- rownames(meta)

# Robust body site detection
cols <- names(meta)
body_col <- intersect(c("body-site", "body.site", "body_site"), cols)

if (length(body_col) == 0) {
  stop("Body site column not found in metadata. Available columns: ", paste(cols, collapse = ", "))
}

meta$body_site <- meta[[body_col[1]]]

meta_out <- meta[, c("sample_id", "body_site")]
readr::write_csv(meta_out, "outputs/tables/heatmap-metadata.csv")

# Quick sanity check
dim(mat_log)
[1] 30 34

The transformation you choose defines what “pattern” means.

Log1p reduces dominance effects, making mid-abundance taxa visible. Premium extensions can explore CLR and compositional heatmaps.

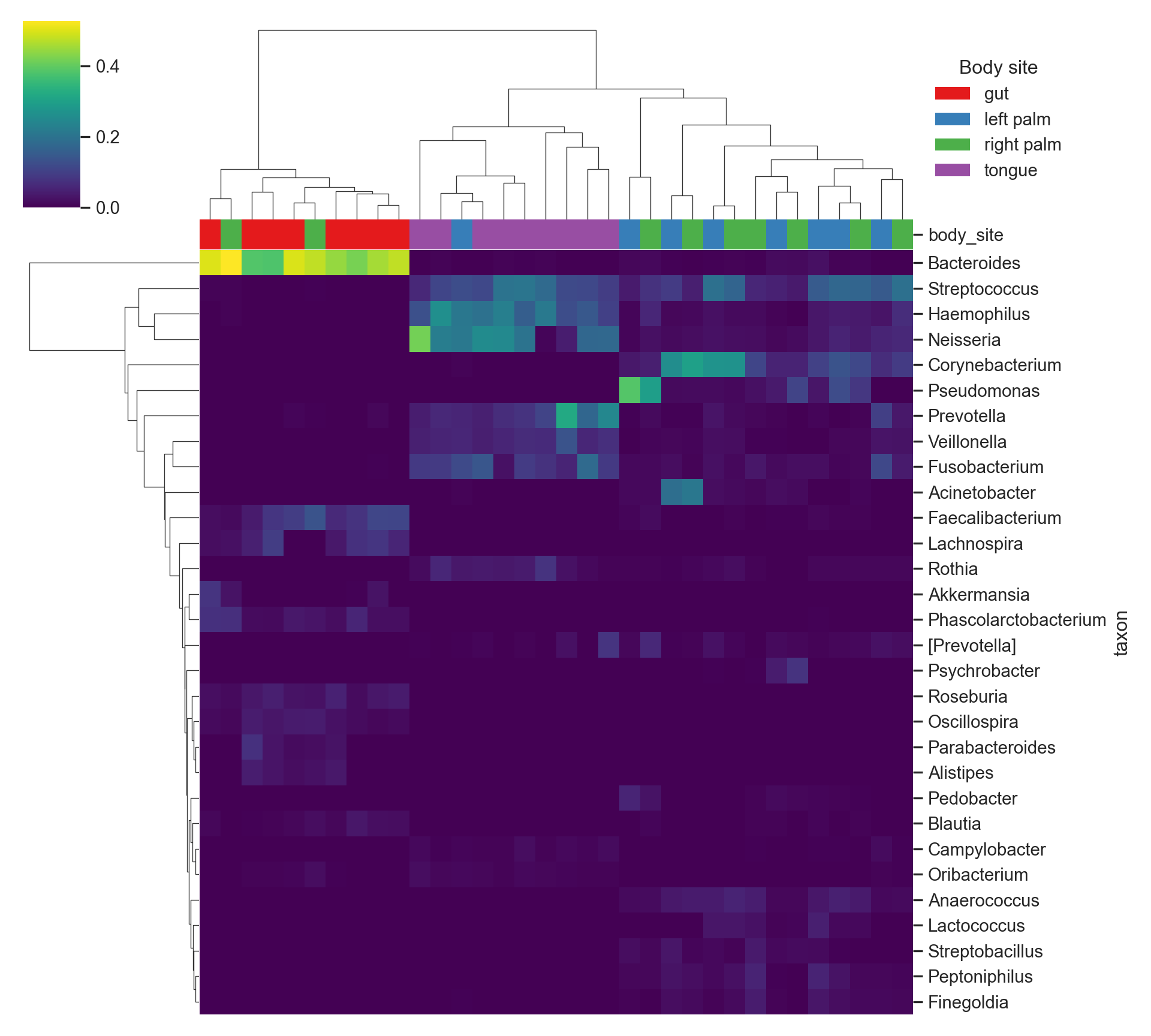

Heatmap (Python, seaborn)

This is a modern heatmap with hierarchical clustering.

  • Rows cluster by taxa similarity
  • Columns cluster by sample similarity
  • Body site is used as a column annotation
import pandas as pd
import seaborn as sns
import matplotlib.pyplot as plt

mat = pd.read_csv("outputs/tables/heatmap-matrix.csv", index_col=0)
meta = pd.read_csv("outputs/tables/heatmap-metadata.csv")

# Align metadata order to matrix columns
meta = meta.set_index("sample_id").reindex(mat.columns)

# Palette customization for annotations
palette_name = "Set1"   # Try: "Set1", "tab10", "colorblind"
sites = meta["body_site"].astype(str).unique().tolist()
site_colors = dict(zip(sites, sns.color_palette(palette_name, n_colors=len(sites))))
col_colors = meta["body_site"].astype(str).map(site_colors)

sns.set_theme(style="white")

g = sns.clustermap(
    mat,
    method="average",
    metric="euclidean",
    col_colors=col_colors,
    cmap="viridis",
    figsize=(10, 9),
    xticklabels=False,
    yticklabels=True
)

# Legend for body site annotation
for site, c in site_colors.items():
    g.ax_col_dendrogram.bar(0, 0, color=c, label=site, linewidth=0)

g.ax_col_dendrogram.legend(
    title="Body site",
    loc="center",
    ncol=1,
    bbox_to_anchor=(1.12, 0.5),
    frameon=False
)

plt.show()

Clustering is a pattern-finding tool.

Clusters should be treated as hypotheses until validated with targeted analysis.

Reading heatmaps responsibly

What patterns can suggest

  • Taxa that co-occur across samples
  • Group structure (samples that cluster together)
  • Dominance patterns (taxa that stand out repeatedly)

Common misinterpretations

  • Clustering does not imply causation
  • Bright color does not automatically imply biological importance
  • Heatmaps are highly sensitive to:
    • transformation
    • filtering and top-N selection
    • distance metric and linkage method

Heatmaps are not “results” by themselves.

They are a compact way to inspect structure and generate questions for follow-up.

Premium extension idea (kept for later)

In premium, you can add:

  • CLR transformation and compositional heatmaps

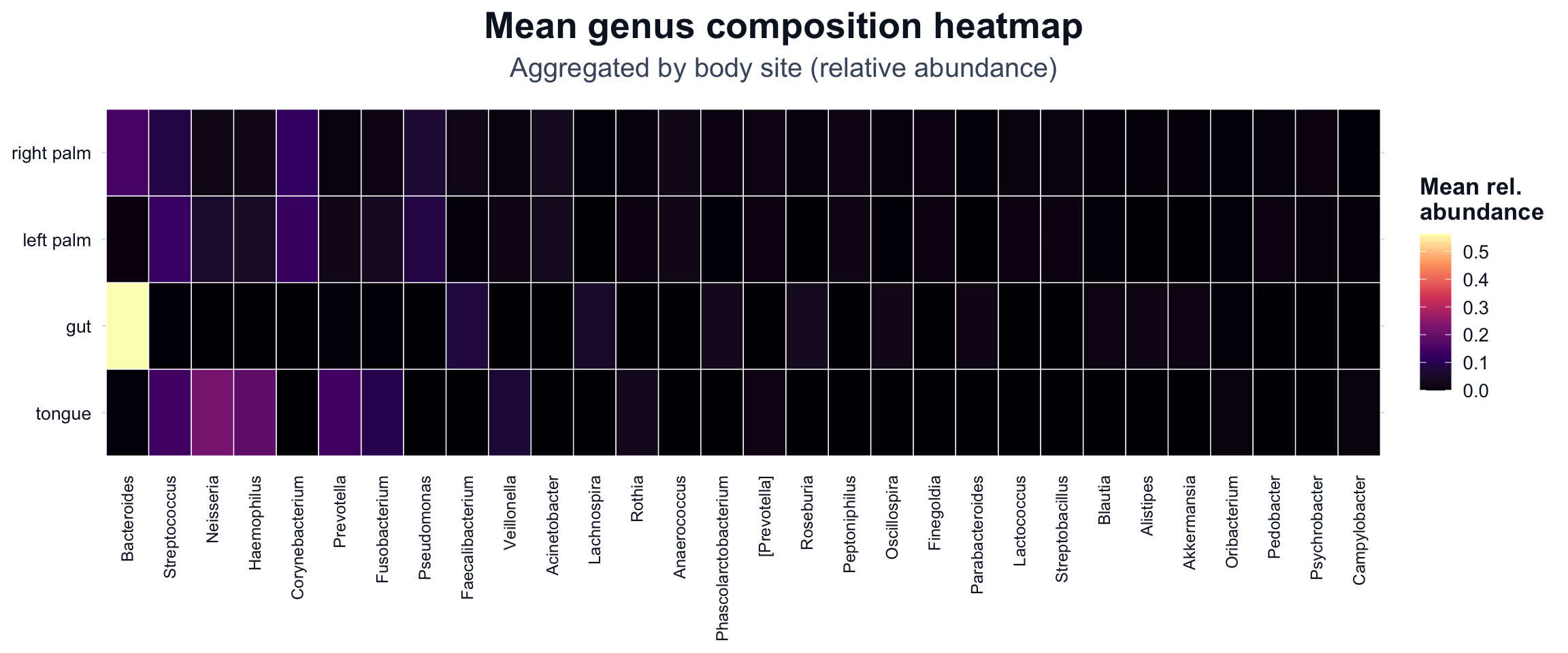

  • per-group mean heatmaps (reduces sample noise)
  • differential abundance overlays (results + visualization)
  • stability checks: does clustering persist under alternative transformations?
